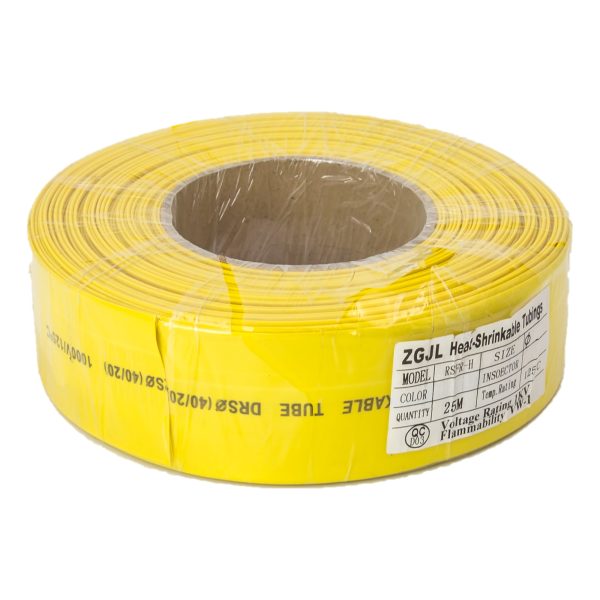

20mm Heat Shrink Tubing Yellow. 2:1 Ratio - Per M
20mm Heat Shrink Tubing Yellow. 2:1 Ratio - Per M - Image 2

20mm Heat Shrink Tubing Yellow. 2:1 Ratio – Per M

SKU: VMP/HS20MMYEL
£2.24ex.VAT£2.69inc.VAT

In stock

Add to wishlist
  • Shrink ratio: 2:1.
  • Soft, quick shrink & stable performance.
  • Very flexible
SKU: VMP/HS20MMYEL Categories: , ,

Related products

Additional Information

Voltage / Rating

1000V

Description

The shrink ratio of this heat shrink tubing is 2:1 which means it shrinks to half of its original diameter.

What is Heat Shrink Tubing?

Heat shrink tubing is a type of extruded plastic tubing that can be cut to size and fitted over a wire or cable joint to protect and insulate the connection. When heated is applied the tubing shrinks permanently providing a protective seal. The amount it shrinks depends on its shrink ratio. When you buy the tubing it is in its expanded state, this expanded tubing has memory so when it is heated it returns to its original state.

How to use Heat Shrink Tubing

The diameter of the wire or cable is measured and the correct sized heat shrink tubing selected. A piece of the heat shrink tube is cut to size which is long enough to cover the connection or joint after heating. This then slides onto the wire. After the cable or wire has been joined the piece of heat shrink tube is moved over the joint and heated with a heat gun until it shrinks and forms a tight wrapping around the joint

Product Characteristics:

Shrink ratio: 2:1.

Flat measurements:  20mm Ø – 32mm flat

Shrinking temperature: 84~120°C.

Soft, quick shrink & stable performance.

Operating temperature: -45~125°C.

Voltage Rating 1000V

Flammability Rating VW-1. Recognized by both UL and CSA standards,
